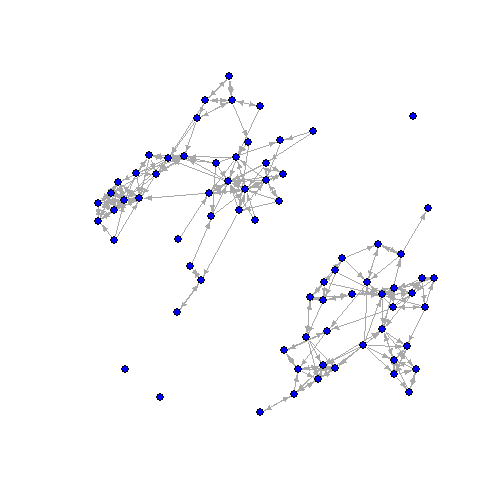

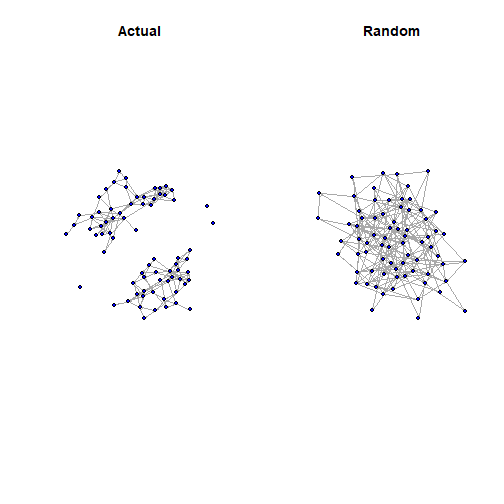

class: center, middle, inverse, title-slide .title[ # Advanced Network Analysis ] .subtitle[ ## Random Graphs ] .author[ ### Olga Chyzh [www.olgachyzh.com] ] --- ## Why ERGMs? The fundamental problem of network analysis: - Is the network we observe an Erdos-Renyi network? - In an Erdos-Renyi network, the probability of each edge is independent of that of other edges. - If not, what are the endogeneous network features that define our network? --- ## Example: Friendship Netwok ```r library(igraph) library(sna) data(coleman) #Use friendship data coleman<-coleman[1,,] #convert to an -igraph- object, we'll treat it as a directed graph for now: coleman<-graph_from_adjacency_matrix(coleman, mode="directed", diag=FALSE) edge_density(coleman) ``` ``` ## [1] 0.04623288 ``` ```r reciprocity(coleman) #Note that -igraph- default is an undirected graph ``` ``` ## [1] 0.5102881 ``` --- ## Friendship Data <img src="05_random_graphs_files/figure-html/unnamed-chunk-2-1.png" width="60%" style="display: block; margin: auto;" /> - What are some endogenous network features of this network? --- ## Erdos-Renyi Networks - In order to answer whether an observed network is different from a random network, it would help to know what a random network would look like. - In a random network, all edges have the same probability of realization, `\(p\)`. Moreover, the probability of realization of edge `\(i\)`, `\(p_i\)`, does not depend on `\(p_j\)`. --- ## Simulate A Random Graph to Compare to the Coleman Data Need: - number of nodes `\(N\)` in the friendship network - the probability that each two nodes are connected `\(p\)` ```r vcount(coleman) #returns the number of vertices ``` ``` ## [1] 73 ``` ```r gsize(coleman) #returns the number of edges ``` ``` ## [1] 243 ``` ```r #or summary(coleman) ``` ``` ## IGRAPH fe3973e DN-- 73 243 -- ## + attr: name (v/c) ``` --- ## Simulate A Random Graph to Compare to the Coleman Data - Let `\(p\)` denote the probability that any two vertices are connected by an edge. Then, we can calculate the value of `\(p\)` in the friendship network as the number of observated edges over the number of all possible edges. + With 73 vertices, we have `\(73*72/2=2628\)` possible undirected edges or `\(73*72=5256\)` directed edges, as each vertex can connect to each other vertex, but there are no self-loops. (Since the friendship network is directed, let's focus on simulating a directed network.) + Then `\(p=243/5256=0.046\)`. Does this value seem high or low? Note that `\(p\)` is the clustering coefficient of a random network with a given number of nodes and edges. --- ## Simulate A Random Graph (Continued) ```r set.seed(45765) #since a simulation involves randomness, set the seed for #reproducibility. #Step i--start with a matrix of 73 unconnected nodes. N=73 #Set the number of nodes: rnet<-matrix(0, nrow=N,ncol=N) #Step ii: p<-243/5256 for (i in 1:N) { for (j in 1:N){ if (i!=j) { rnet[i,j]=as.numeric(runif(1)<p) }}} ``` --- ## Check Our Work ```r summary(g<-graph_from_adjacency_matrix(rnet, mode="directed", weighted=NULL)) ``` ``` ## IGRAPH fe59946 D--- 73 232 -- ``` ```r edge_density(coleman) ``` ``` ## [1] 0.04623288 ``` ```r reciprocity(coleman) #Note that -igraph- default is an undirected graph ``` ``` ## [1] 0.5102881 ``` ```r edge_density(g) ``` ``` ## [1] 0.04414003 ``` ```r reciprocity(g) #Note that -igraph- default is an undirected graph ``` ``` ## [1] 0.03448276 ``` --- ## Visualize <img src="05_random_graphs_files/figure-html/unnamed-chunk-6-1.png" width="80%" style="display: block; margin: auto;" /> --- ## Summarize the Observed and Simulated Networks ```r library(statnet) data(coleman) coleman<- as.network.matrix(coleman[1,,], matrix.type='adjacency', directed=TRUE) rnet<- as.network.matrix(rnet, matrix.type='adjacency', directed=TRUE) summary(coleman~ edges+idegree(6)+ triangles+ mutual+ostar(2)+istar(2)) ``` ``` ## edges idegree6 triangle mutual ostar2 istar2 ## 243 5 460 62 383 542 ``` ```r summary(rnet~edges+idegree(6)+ triangles+ mutual+ostar(2)+istar(2)) ``` ``` ## edges idegree6 triangle mutual ostar2 istar2 ## 232 5 37 4 343 345 ``` --- ## Your Turn 1. Simulate a random network that we could compare to the Sampson data. 2. Plot the two side-by-side 3. Use summary to further explore the differences between the two. 4. Based on this analysis, what model specification would you propose?
